Ring Joint Metal Gaskets is manufactured by machining from an after forging and heat treatment metal blank.

The sealing surface is a line or a regular shape, giving excellent rigidity and strength to the product which is well suitable for high-pressure steam, gas and solvent condition in high-pressure vessel, valve and reactor. The most common industry product is R type Ring Joint Metallic Gasket which is classified into oval style and octagonal style according to their cross sections. There are various standards but almost all the standards have similar dimensions so that Ring Joint Metal Gaskets could be universal. RX and BX types are the improved generations of Ring Joint Metal Gaskets. The maximum operating pressures are 2500PSI (17MPa) and 15000PSI (100MPa) for RX and BX, respectively. The Lens type could be used over 300MPa.

ACCORDING TO ASME B16.20 STANDARD


RING NO	Pressure class rating
	Pressure class rating
	150	300/600	900	1500	2500	2000	3000	5000
R11		1/2
R12			1/2	1/2
R13		3/4			1/2
R14			3/4	3/4
R15	1
R16		1/1	1/1	1/1	3/4	1	1	1
R17	1.25
R18		1 1/4	1 1/4	1 1/4	1	1 1/4	1 1/4	1 1/4
R19	1 1/2
R20		1 1/2	1 1/2	1 1/2		1 1/2	1 1/2	1 1/2
R21					1 1/4
R22	2
R23		2			1 1/2	2
R24			2	2			2	2
R25	2 1/2
R26		2 1/2			2	2 1/2
R27		2 1/2	2 1/2				2 1/2	2 1/2
R28				2 1/2
R29	3
R30		3
R31		3	3			3	3
R32					3
R33	3 1/2
R34		3 1/2
R35				3				3
R36	4
R37		4	4			4	4	3 1/2
R38					4
R39				4				4
R40	5
R41		5	5			5	5
R42					5
R43	6
R44				5				5
R45		6	6			6	6
R46				6				6
R47					6
R48	8
R49		8	8			8	8
R50				8				8
R51					8
R52	10
R53		10	10			10	10
R54				10				10
R55					10
R56	12
R57		12	12			12	12
R58				12
R59	14
R60					12
R61		14				14	14
R62			14
R63				14
R64	16
R65		16				16
R66			16				16
R67				16
R68	18
R69		18				18
R70			18				18
R71				18
R72	20
R73		20				20
R74			20				20
R75				20
R76	24
R77		24
R78			24
R79				24
R80					22
R81		22
R82								1
R84								1 1/2
R85								2
R86								2 1/2
R87								3
R88								4
R89								3 1/2
R90								5
R91								10
R92
R93		26
R94		28
R95		30
R96		32
R97		34
R98		36
R99						8	8
R100			26
R101			28
R102			30
R103			32
R104			34
R105			36

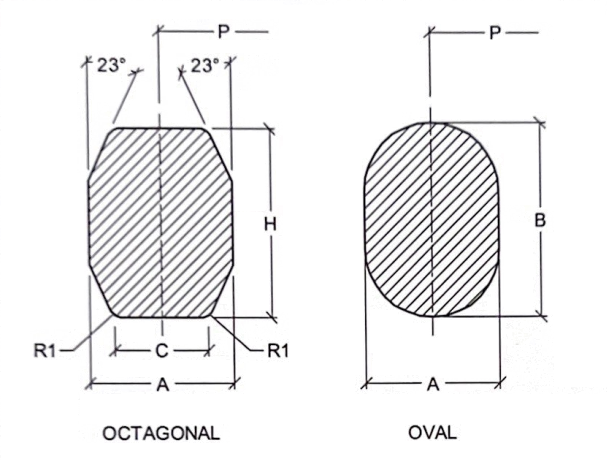

RING NO			Height of Ring
	Diameter of Ring	Width of Ring	Oval	Octagonal	Width of Flat on Octagonal Ring	Radius in Octagonal Ring
	P	A	B	H	C	R
R11	34.14	6.35	11.2	9.7	4.32	1.5
R12	39.7	7.95	14.2	12.7	5.23	1.5
R13	42.88	7.95	14.2	12.7	5.23	1.5
R14	44.45	7.95	14.2	12.7	5.23	1.5
R15	47.63	7.95	14.2	12.7	5.23	1.5
R16	50.8	7.95	14.2	12.7	5.23	1.5
R17	57.15	7.95	14.2	12.7	5.23	1.5
R18	60.33	7.95	14.2	12.7	5.23	1.5
R19	65.1	7.95	14.2	12.7	5.23	1.5
R20	68.28	7.95	14.2	12.7	5.23	1.5
R21	72.24	11.13	17.5	16	7.75	1.5
R22	82.55	7.95	14.2	12.7	5.23	1.5
R23	82.55	11.13	17.5	16	7.75	1.5
R24	95.25	11.13	17.5	16	7.75	1.5
R25	101.6	7.95	14.2	12.7	5.23	1.5
R26	101.6	11.13	17.5	16	7.75	1.5
R27	107.95	11.13	17.5	16	7.75	1.5
R28	111.13	12.7	19.1	17.5	8.66	1.5
R29	114.3	7.95	14.2	12.7	5.23	1.5
R30	117.48	11.13	17.5	16	7.75	1.5
R31	123.83	11.13	17.5	16	7.75	1.5
R32	127	12.7	19.1	17.5	8.66	1.5
R33	131.78	7.95	14.2	12.7	5.23	1.5
R34	131.78	11.13	17.5	16	7.75	1.5
R35	136.53	11.13	17.5	16	7.75	1.5
R36	149.23	7.95	14.2	12.7	5.23	1.5
R37	149.23	11.13	17.5	16	7.75	1.5
R38	157.18	15.88	22.4	20.6	10.49	1.5
R39	161.93	11.13	17.5	16	7.75	1.5
R40	171.45	7.95	14.2	12.7	5.23	1.5
R41	180.98	11.13	17.5	16	7.75	1.5
R42	190.5	19.05	25.4	23.9	12.32	1.5
R43	193.68	7.95	14.2	12.7	5.23	1.5
R44	193.68	11.13	17.5	16	7.75	1.5
R45	211.15	11.13	17.5	16	7.75	1.5
R46	211.15	12.7	19.1	17.5	8.66	1.5
R47	228.6	19.05	25.4	23.9	12.32	1.5
R48	247.65	7.95	14.2	12.7	5.23	1.5
R49	269.88	11.13	17.5	16	7.75	1.5
R50	269.88	15.88	22.4	20.6	10.49	1.5
R51	279.4	22.23	28.7	26.9	14.81	1.5
R52	304.8	7.95	14.2	12.7	5.23	1.5
R53	323.85	11.13	17.5	16	7.75	1.5
R54	323.85	15.88	22.4	20.6	10.49	1.5
R55	342.9	28.58	36.6	35.1	19.81	1.5
R56	381	7.95	14.2	12.7	5.23	1.5
R57	381	11.13	17.5	16	7.75	1.5
R58	381	22.23	28.7	26.9	14.81	1.5
R59	396.88	7.95	14.2	12.7	5.23	1.5
R60	406.4	31.75	39.6	38.1	22.33	2.3
R61	419.1	11.13	17.5	16	7.75	1.5
R62	419.1	15.88	22.4	20.6	10.49	1.5
R63	419.1	25.4	33.3	31.8	17.3	2.3
R64	454.03	7.95	14.2	12.7	5.23	1.5
R65	469.9	11.13	17.5	16	7.75	1.5
R66	469.9	15.88	22.4	20.6	10.49	1.5
R67	469.9	28.58	36.6	35.1	19.81	2.3
R68	517.53	7.95	14.2	12.7	5.23	1.5
R69	533.4	11.13	17.5	16	7.75	1.5
R70	533.4	19.05	25.4	23.9	12.32	1.5
R71	533.4	28.58	36.6	35.1	19.81	2.3
R72	558.8	7.95	14.2	12.7	5.23	1.5
R73	584.2	12.7	19.1	17.5	8.66	1.5
R74	584.2	19.05	25.4	23.9	12.32	1.5
R75	584.2	31.75	39.6	38.1	22.33	2.3
R76	673.1	7.95	14.2	12.7	5.23	1.5
R77	692.15	15.88	22.4	20.6	10.49	1.5
R78	692.15	25.4	33.3	31.8	17.3	2.3
R79	692.15	34.93	44.5	41.4	24.82	2.3
R80	615.95	7.95		12.7	5.23	1.5
R81	635	14.3		19.1	9.58	1.5
R82	57.15	11.13		16	7.75	1.5
R84	63.5	11.13		16	7.75	1.5
R85	79.38	12.7		17.5	8.66	1.5
R86	90.5	15.88		20.6	10.49	1.5
R87	100.03	15.88		20.6	10.49	1.5
R88	123.83	19.05		23.9	12.32	1.5
R89	114.3	19.05		23.9	12.32	1.5
R90	155.58	22.23		26.9	14.81	1.5
R91	260.35	31.75		38.1	22.33	2.3
R92	228.6	11.13	17.5	16	7.75	1.5
R93	749.3	19.05		23.9	12.32	1.5
R94	800.1	19.05		23.9	12.32	1.5
R95	857.25	19.05		23.9	12.32	1.5
R96	914.4	22.23		26.9	14.81	1.5
R97	965.2	22.23		26.9	14.81	1.5
R98	1022.35	22.23		26.9	14.81	1.5
R99	234.95	11.13		16	7.75	1.5
R100	749.3	28.58		35.1	19.81	2.3
R101	800.1	31.75		38.1	22.33	2.3
R102	857.25	31.75		38.1	22.33	2.3
R103	914.4	31.75		38.1	22.33	2.3
R104	965.2	34.93		41.4	24.82	2.3
R105	1022.35	34.93		41.4	24.82	2.3
