RX&SRX

Collect

Descriptions
Parameter

ACCORDING TO ASME B16.20 STANDARD


RING NO	Pressure class rating
RING NO	2000	3000	5000
RX20	1 1/2	1 1/2	1 1/2
RX23	2
RX24		2	2
RX25			3
RX26	2 1/2
RX27		2 1/2	2 1/2
RX31	3	3
RX35			3
RX37	4	4
RX39			4
RX41	5	5
RX44			5
RX45	6	6
RX46			6
RX47			8
RX49	8	8
RX50			8
RX53	10	10
RX54			10
RX57	12	12
RX63			14
RX65	16
RX66		16
RX69	18
RX70		18
RX73	20
RX74		20
RX82		1
RX84		1 1/2
RX85		2
RX86		2 1/2
RX87		3
RX88		4
RX89		3 1/2
RX90		5
RX91		10
RX99	8	8
RX201			1 1/4
RX205			1 3/4
RX210			2
RX215			4

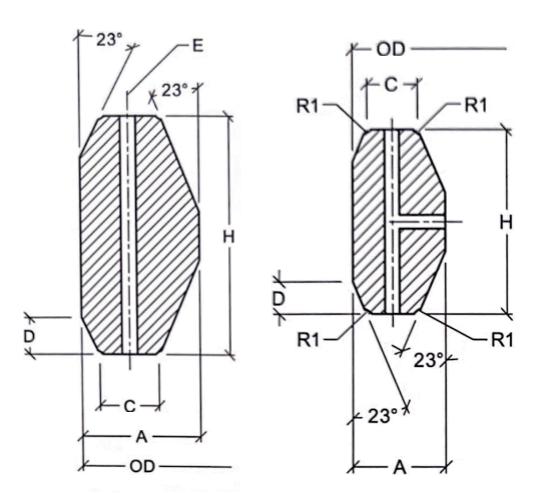

RING NO	Outside Diameter of Ring	Width of Ring	Height of Ring	Width of Flat	Height of Outside Bevel	Radius in Octagonal Ring
RING NO	OD	A	H	C	D	R
RX20	76.2	8.74	19.05	4.62	3.18	1.5
RX23	93.27	11.91	25.4	6.45	4.24	1.5
RX24	105.97	11.91	25.4	6.45	4.24	1.5
RX25	109.55	8.74	19.05	4.62	3.18	1.5
RX26	111.91	11.91	25.4	6.45	4.24	1.5
RX27	118.26	11.91	25.4	6.45	4.24	1.5
RX31	134.54	11.91	25.4	6.45	4.24	1.5
RX35	147.24	11.91	25.4	6.45	4.24	1.5
RX37	159.94	11.91	25.4	6.45	4.24	1.5
RX39	172.64	11.91	25.4	6.45	4.24	1.5
RX41	191.69	11.91	25.4	6.45	4.24	1.5
RX44	204.39	11.91	25.4	6.45	4.24	1.5
RX45	221.84	11.91	25.4	6.45	4.24	1.5
RX46	222.25	13.49	28.58	6.68	4.78	1.5
RX47	245.26	19.84	41.28	10.34	6.88	1.5
RX49	280.59	11.91	25.4	6.45	4.24	1.5
RX50	283.36	16.66	31.75	8.51	5.28	1.5
RX53	334.57	11.91	25.4	6.45	4.24	1.5
RX54	337.34	16.66	31.75	8.51	5.28	1.5
RX57	391.72	11.91	25.4	6.45	4.24	1.5
RX63	441.73	27	50.8	14.78	8.46	2.3
RX65	480.62	11.91	25.4	6.45	4.24	1.5
RX66	457.99	16.66	31.75	8.51	5.28	1.5
RX69	544.12	11.91	25.4	6.45	4.24	1.5
RX70	533.4	550.06	19.84	10.34	6.88	2.3
RX73	584.2	596.11	13.49	6.68	5.28	1.5
RX74	584.2	600.86	19.84	10.34	6.88	2.3
RX82	57.15	67.87	11.91	6.45	4.24	1.5
RX84	63.5	74.22	11.91	6.45	4.24	1.5
RX85	79.38	90.09	13.49	6.68	4.24	1.5
RX86	90.49	103.58	15.09	4.78	4.78	1.5
RX87	100.01	113.11	15.09	4.78	4.78	1.5
RX88	123.83	139.29	17.48	5.28	5.28	1.5
RX89	114.3	129.77	18.26	5.28	5.28	1.5
RX90	155.58	174.63	19.84	7.42	7.42	2.3
RX91	260.35	286.94	30.18	7.54	7.54	2.3
RX99	234.95	245.67	11.91	4.24	4.24	1.5
RX201	46.04	51.46	5.74	1.45	1.45	0.5
RX205	57.15	62.31	5.56	1.83	1.83	0.5
RX210	88.9	97.64	9.53	3.18	3.18	0.8
RX215	130.18	140.89	11.91	4.24	4.24	1.5
