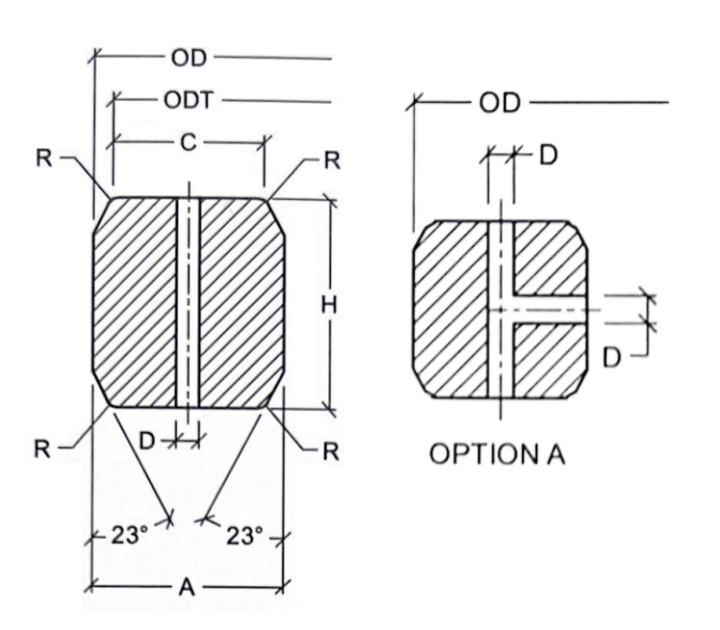

BX&SBX

Collect
  • Descriptions
  • Parameter

ACCORDING TO ASME B16.20 STANDARD


RING

NO

Pressure class rating
5000100001500020000
BX150
1 11/161 11/16
BX151
1 13/141 13/161 13/16
BX152
2  1/162  1/162  1/16
BX153
2  9/162  9/162  9/16
BX154
3  1/163  1/163  1/16
BX155
4  1/164  1/164  1/16
BX156
7  1/167  1/167  1/16
BX157
99
BX158
1111
BX159
13 5/8

BX16013 5/8


BX16116 3/4


BX16216 3/416 3/4

BX16318 3/4


BX164
18 3/4

BX16521 1/4


BX166
21 1/4

BX167



BX168



BX169



BX170



BX171



BX172



BX303




RING

 NO

Outside

Diameter

of Ring

Height

of Ring

Width

of Ring

Outside

Diameter of Flat

Width

 of Flat

Hole Size
ODHAODTCD
BX15072.199.39.370.877.981.5
BX15176.49.639.6375.038.261.5
BX15284.6810.2410.2483.248.791.5
BX153100.9411.3811.3899.319.781.5
BX154116.8412.412.4115.0910.641.5
BX155147.9614.2214.22145.9512.221.5
BX156237.9218.6218.62235.2815.983
BX157294.4620.9820.98291.4918.013
BX158352.0423.1423.14348.7719.863
BX159426.7225.725.7423.0922.073
BX160402.5923.8313.74399.2110.363
BX161491.4128.0716.21487.4512.243
BX162475.4914.2214.22473.4812.221.5
BX163556.1630.117.37551.8913.113
BX164570.5630.124.59566.2920.323
BX165624.7132.0318.49620.1913.973
BX166640.0332.0326.14635.5121.623
BX167759.3635.8613.11754.288.031.5
BX168765.2535.8616.05760.1710.971.5
BX169173.5115.8512.93171.2710.691.5
BX170218.0314.2214.22216.0312.221.5
BX171267.4414.2214.22265.4312.221.5
BX172333.0714.2214.22331.0612.221.5
BX303852.7537.9516.97847.3711.611.5
